All of the main parts of the horses body can be treated by the effect of the CIR-system with the customised body formed back, neck blankets and the gaiters. The interaction of material and technology facilitates the correct precaution and therapy.
Operating the CIR-system – individual treatment with the 5 zone controls.

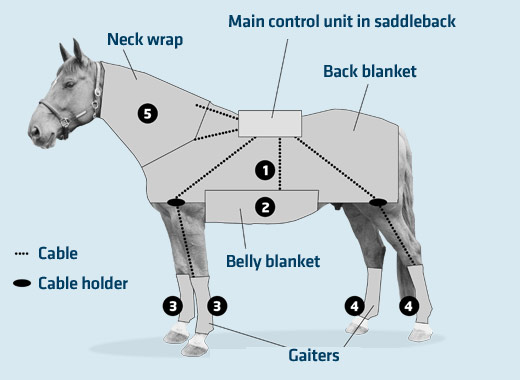

The CIR-system is devided into 5 different zones (see picture below). You have the option of switching individual sections on or off. Electric energy for the CIR-system come from a power point. The temperature can be set in steps of 1 degree Celsius (33.8F) from 30 to 60 degree Celsius (86 - 140 F). Depending on requirements or seriousness of illness can the temperature be varied.
Generally a treatment session should be for a minimum 20 minutes. The treatment could also take one hour, has to be repeated several times a day or once a week as the case may be. Each animal is unique and requires its own treatment program. Everybody can work out the optimal therapy or precaution for his horse with a little common sense and horsemanship.
Technical data main control unit:
Input voltage: AC 220-240V, 50 Hz
Input power: 330W (max.)
Output power: DC 36V
Technical data neck controls:
Input voltage: AC 220-240V, 50 Hz
Input power: 90 W (max.)
Output power: DC 36V
Measurements:
Back cover length abt. 145 cm. The blanket can be used for all horses and ponies By having a straight edge. All other components, like neck wrap and gaiters can be adjusted by hook-and-loop fasteners.
|
